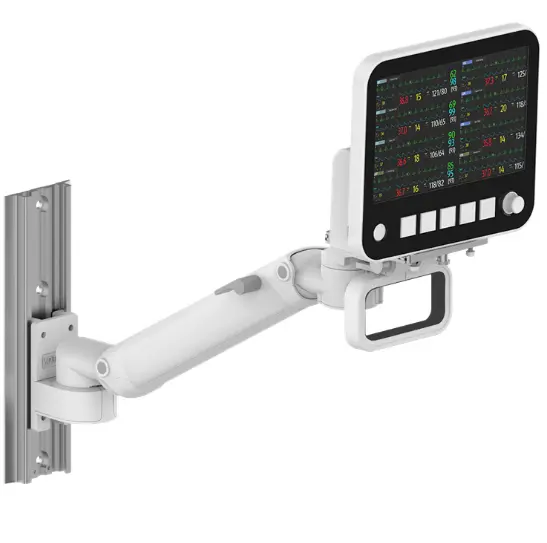

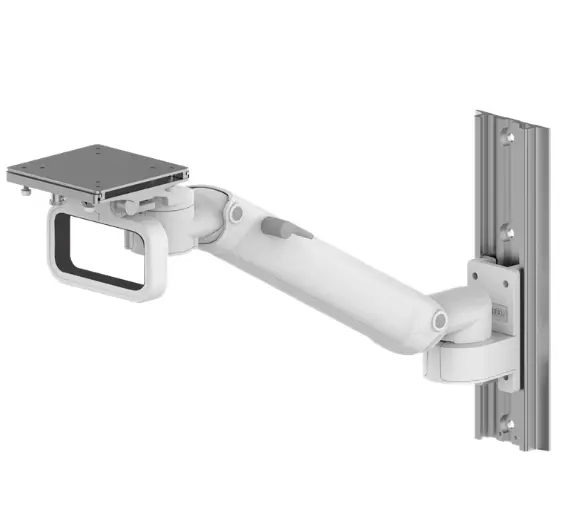

Patient Monitor Adjustable Support Medical Mount

• Key Features:

• • Height Adjustment: 450 mm range using an internal gas spring; lockable at any height within the range by releasing a button

  • Load Capacity: Multiple gas spring options support a range of device weights (e.g., ~2.5 kg to ~16.5 kg depending on model and spring strength)

  • Articulation: Horizontal swivel ±90° and selectable tilt options (e.g., 0° to –25° or 0° to –120°)

  • Mounting: Wall channel installation (standard channel with optional lengths)

  • Concealed Cable Management: Integrated to maintain a tidy installation.

  • Material & Finish: Aluminium alloy construction with a medical-white finish typical for clinical settings

  • Typical Applications: Supports medical displays, patient monitors, tablets, and other clinical equipment for flexible positioning

  • Application: Anaesthesia machine, Patient monitor & screens

If you need, I can also outline typical compatible device sizes or accessories often paired with this arm (e.g., VESA mounts, tablet clamps).

Fully customisable to your setup — request a quote today.

 Specifications

• Arm length：576mm
• Height adjustment: 450mm
• Horizontal Rotate：+ – 90°
• Tilt： 0~ -25° or 0~ -120°
• Screen Size：24inch
• Screen Max weight：10kg
• Keyboard Max weight：2kg
• Keyboard Max Size ：158*442mm
• Optional Channel 482mm /320mm
